A beverage factory layout must fit production, cleaning, maintenance and material movement. Pair the dimensioned drawing with a utility schedule for the selected equipment. Start with the actual building and product mix, then check the connections and operating scenarios before approving installation work.

Specify utilities at each equipment connection

Beverage Factory Layout: Space, Flow and Utility Checks

Start with a measured building brief

Record internal dimensions, columns, changes in floor level, clear height, doors, overhead services and areas that cannot be used. Check the delivery route for the largest shipping module, including turns, lifting and later removal. Overall building area alone does not show whether the line can be installed.

Use the launch product-and-package matrix, accepted output and shift plan. Identify retained machines, water treatment, storage, bottle supply and final packing. Mark measured facts separately from assumptions; give the drawing a revision and an owner for each unresolved dimension. Site-specific structural and safety matters need the responsible qualified parties.

Drawing layer	Information to record	Decision it supports
Building geometry	Usable internal dimensions, columns, floor levels, clear height and restricted areas.	Whether the equipment and service envelopes fit the actual building.
Delivery and removal	Door/opening dimensions, unloading route, turns, overhead restrictions and lifting arrangements.	Whether the largest module can be brought in and later removed for service.
Site services	Electrical supply points, water, air, cooling/heating, drainage and existing service routes.	Connection locations and the work needed between utilities and machines.
Production movement	Ingredients, bottles/preforms, caps, labels, packs, finished goods, rejects and waste.	Replenishment routes and potential conflicts between people and materials.
Operating access	Operator positions, guard/door opening, cleaning access and component-removal space.	A usable installation rather than equipment rectangles packed into floor space.

Trace product, packaging and people separately

Follow ingredients and open product separately from incoming packaging, closed containers and finished packs. Add waste removal and, where relevant, returnable-container handling. The diagram below shows a discussion sequence, not a scaled layout or an approved hygienic zoning plan.

Overlay staff, replenishment and maintenance routes. A filler can fit between columns while its cap-loading route crosses finished-pallet traffic. Review those activities and the required transitions before fixing conveyor positions. Plan access for the actual handling equipment and loads rather than copying an aisle width from another plant.

Container supply
Filling and closing
Labeling and packing
Finished-goods dispatch

Illustrative sequence only. Add preparation, inspection, buffers and controlled transitions required by the confirmed process.

Reserve space that machine footprints leave out

Space layer	What to show	Decision to resolve
Operating area	Operators, guard openings, material loading and cleaning positions.	Can the routine task be completed without blocking the material route?
Service and removal	Access panels, component withdrawal, lifting and removal direction.	Can the largest service item be removed without moving another installed machine?
Material and buffer area	Replenishment units, temporary packs, pallets, rejects and waste.	Are capacities and routes consistent with the shift and final-pack plan?
Utility and future interfaces	Pipe/cable routes, drains, utility equipment and visible reserved expansion.	Which space is required now and which is reserved for a defined later stage?

Specify utilities at each equipment connection

Utility	Specify at the connection	Compare on a consistent basis
Electrical	Voltage, phase, frequency, connected loads, operating demand and startup information.	kW is power; kWh is energy over time. Connected load alone does not establish consumption per bottle.
Compressed air	Pressure at inlet, peak/average flow, air quality and flow reference conditions.	Separate high-pressure blowing air from service air; normalize flow units and conditions.

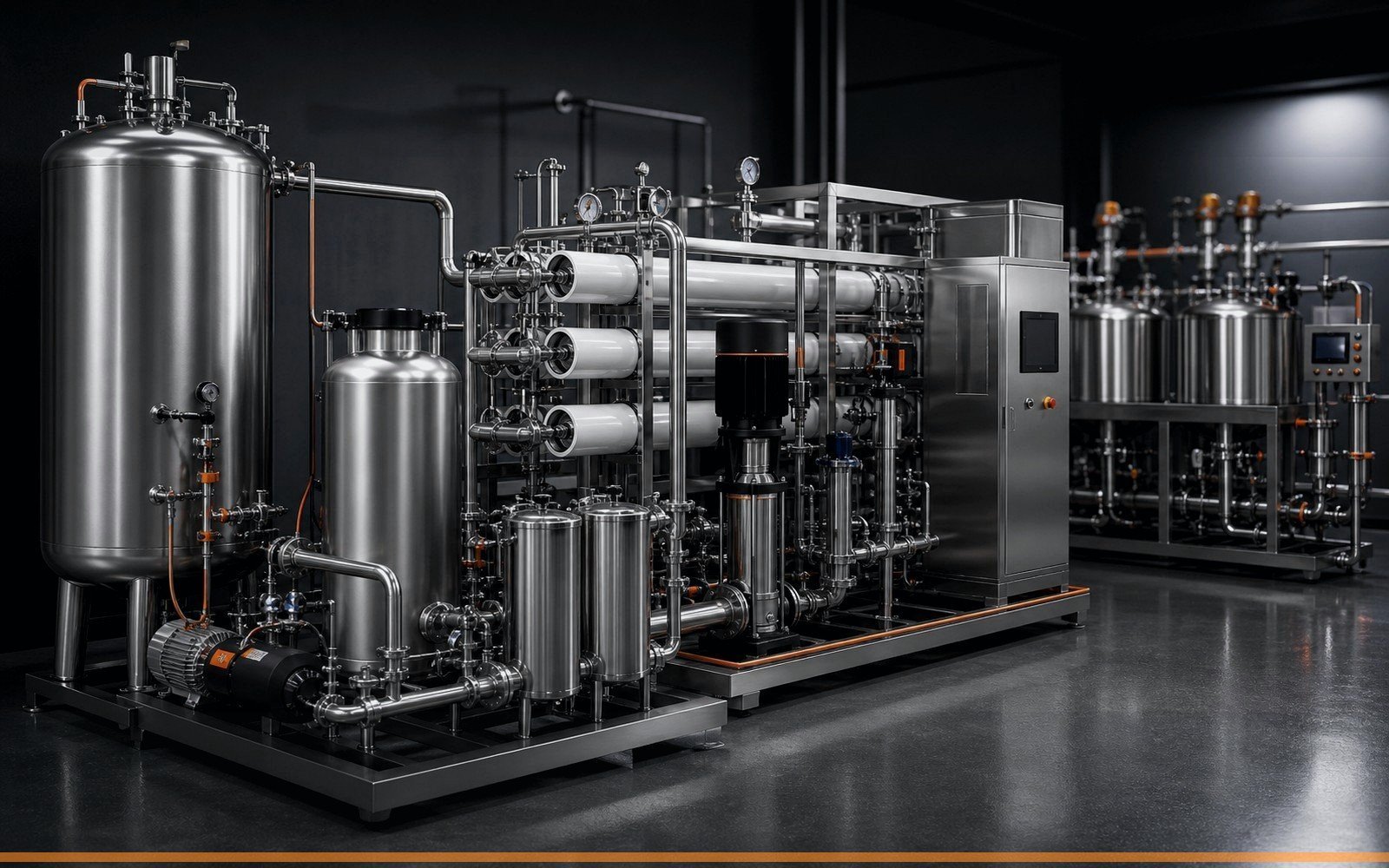

Water	Quality, pressure, flow and temperature for product, rinsing, washing and cleaning uses.	Separate saleable product water from process consumption, treatment losses and return streams.
Cooling	Heat load, supply/return conditions, flow, fluid requirements and ambient design basis.	Compare the complete cooling duty and boundary, not only a chiller label or nominal BPH.
Heating or steam	Required process duty, delivery conditions, timing and condensate/return arrangements.	Identify simultaneous consumers and the difference between heat-up and steady operation.
CO2 where used	Quality, delivery conditions, consumption basis and the defined supply boundary.	Separate product carbonation from any specified purge or auxiliary use.
Drainage and effluent	Discharge flow, timing, temperature/characteristics and designated connection points.	Review cleaning peaks and concurrent discharges with the responsible site specialists.

For each row, record the machine or circuit, operating scenario, units, supplier data revision, site-available condition, connection owner and unresolved gap. A single plant total without this detail is difficult to verify during commissioning.

Check simultaneous demand, not just a plant total

Build separate cases for startup, steady production, cleaning/changeover and shutdown. Add consumers that can operate together. A single machine’s cleaning demand need not be added to its mutually exclusive production demand, but another line may continue running during that cleaning cycle.

Record both peak delivery demand and consumption over a cycle. Normalize units and reference conditions before comparing air flows; a volume at line pressure is not automatically the same as free-air delivery. Confirm pressure or temperature at the equipment inlet after distribution losses. Show future capacity separately instead of hiding it in an unexplained margin.

Illustrative example: a system consuming 2 m³/h during production and 6 m³/h during an exclusive cleaning cycle has a 6 m³/h peak for those two modes, not 8 m³/h. If a second line continues consuming 2 m³/h while the first cleans, the shared supply must address 8 m³/h at that time. Storage, usable delivery pressure and the actual schedule still need review.

Resolve a tight layout or an existing-line extension

Tight-hall example: a proposed arrangement fits every machine rectangle but leaves no withdrawal path for a service assembly. Moving the packing machine may recover access, yet change conveyor length, material supply and utility runs. Compare the revised complete layout and interfaces, rather than declaring the original arrangement workable because the footprints fit.

For a retrofit, survey existing machines and controls, then mark tie-in points, temporary material routes and the installation shutdown sequence. Determine who makes each connection and which checks establish site readiness. Keep an interface register linked to the drawing; handover needs the installed revision and updated connection records.

Prepare the layout review and RFQ package

Send a dimensioned survey with columns, heights, doors, access and service points.
List launch products, packages, accepted output, shifts and planned changeovers.
Request machine footprints plus operation, guard-opening and service-removal envelopes.
Collect a utility schedule by connection, scenario, units, quality and revision; compare with site availability.
Assign drawing approval, supply, installation and testing responsibilities; record open assumptions and closure dates.

Questions about factory space and utilities

How much floor area does a beverage line need?

It depends on equipment, access, materials, utilities and building constraints. Review a dimensioned layout with these layers; a sum of machine footprints is not a sufficient factory-area estimate.

Does a larger compressor solve low pressure at a filler?

Not necessarily. Review simultaneous flow, stated reference conditions, treatment equipment, pipe losses and pressure at the machine inlet. Determine the cause before changing the supply package.

Should production and cleaning water always be added together?

Add loads that can occur simultaneously in the confirmed schedule. Keep mutually exclusive modes distinct, but include other lines or circuits that continue using the common supply.
